FEA Impact Analysis – Predict deformation, buckling, fracture and tensile strength and understand failures

Our FEA approach to impact behaviour is sometimes necessary in augmenting physical testing, or in some cases may be required to replace it altogether, for example:

  • In the nuclear industry, or with other high value and high severity scenarios
  • Where designs need to be tested before tooling and manufacture
  • Where stress and failure margins need to be quantified
  • Where detailed scrutiny and design insight is required.

We have many years experience within the nuclear sector which include analysis of dropped nuclear fuel rods, fuel casks, nuclear lifts, crane boom impacts and seismically induced impacts.

Our analysis will provide detailed insight into the prediction of deformation, buckling, fracture and tensile failure, and form the basis of a safety case or inform modifications and redesign.

FEA Impact Analysis – Predict deformation, buckling, fracture and tensile strength and understand failures

Our FEA approach to impact behaviour is sometimes necessary in augmenting physical testing, or in some cases may be required to replace it altogether, for example:

  • In the nuclear industry, or with other high value and high severity scenarios
  • Where designs need to be tested before tooling and manufacture
  • Where stress and failure margins need to be quantified
  • Where detailed scrutiny and design insight is required.

We also have many years experience within the nuclear sector which include analysis of dropped nuclear fuel rods, fuel casks, nuclear lifts, crane boom impacts and seismically induced impacts.

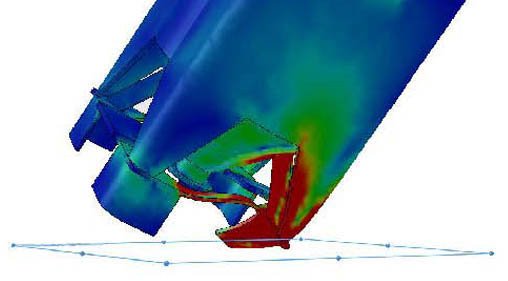

Nuclear case studies are sensitive, so shown above is a standard pharmaceutical vessel dropped on a corner vertically over its centre of gravity. This analysis will provide detailed insight into the prediction of deformation, buckling, fracture and tensile failure, and form the basis of a safety case or inform modifications and redesign.

Nuclear Power Plant - FEA impact

Capability

We have an explicit FEA impact capability with material plasticity and secondary contact logic. We also use non-linear implicit FEA, energy based hand-calculations and, as always, are willing to extend our software capabilities to suit our clients’ needs.

The issue of finding the critical drop orientations and impact points is often a conundrum in itself, but the possibilities can be narrowed down considerably with some careful deduction, considering for example:

  • Physical constraints (geometry, available time, terminal velocity)
  • Centre of gravity location, surface profile and friction
  • Local impact deformation versus global stress-wave propagation
  • Giving priority to weak and critical features

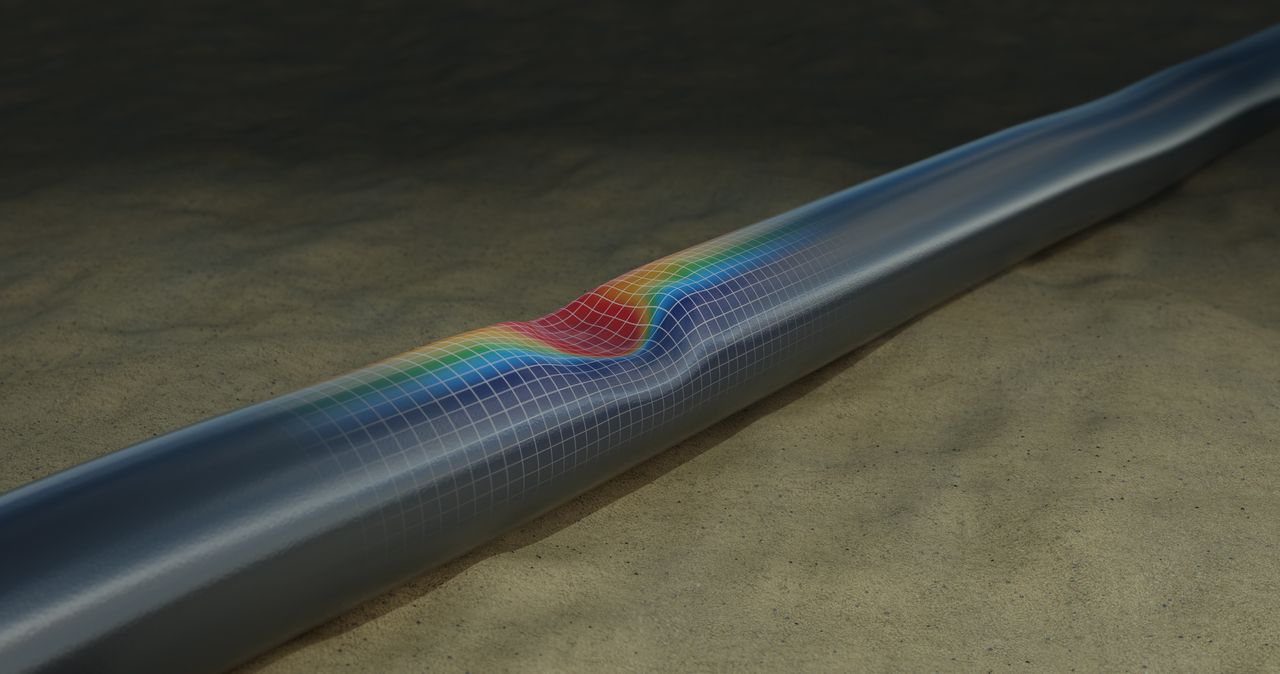

FEA Impact Analysis

Capability

We have an explicit FEA impact capability with material plasticity and secondary contact logic. We also use non-linear implicit FEA, energy based hand-calculations and, as always, are willing to extend our software capabilities to suit our clients’ needs.

The issue of finding the critical drop orientations and impact points is often a conundrum in itself, but the possibilities can be narrowed down considerably with some careful deduction, considering for example:

  • Physical constraints (geometry, available time, terminal velocity)
  • Centre of gravity location, surface profile and friction
  • Local impact deformation versus global stress-wave propagation
  • Giving priority to weak and critical features
FEA Impact Analysis

Latest case study

Impact Study: Vibration Station

Impact Analysis of Plaster & Glass Fibre Tamper Machine DC White have a wealth of experience from many impact analysis projects across a number of industries. These have included Power Stations, Nuclear Fuel Rods and the manufacturing project detailed below. We were asked to investigate the mysterious failures occurring repeatedly in a machine which tamped a mix of plaster and glass fibre into a mould used to [...]
